SMA Male RF Connector Plug for 3#Semi-rigid/Semi-flexible Cable
1.SMA RF connectors are renowned for their high quality and the convenience of quick assembly by simply screwing two connectors together, eliminating the need for soldering or crimping.
2.SMA electrical connectors find widespread application in microwave technologies, antenna systems, and various testing instrumentation due to their reliable performance.
3.Featuring threaded coupling, SMA RF connectors are compact in size, offer vibration resistance, and support a broad frequency range up to 18 GHz (with our SMA RF connectors capable of handling frequencies up to 20 GHz).
4.SMA RF connectors come in diverse styles to meet different needs, including quick-connect, push-on, or standard interfaces, as well as straight, right-angle (90 degrees), bulkhead, or 4-hole panel configurations.
Specifiacation:
Note:The specific data of the model are based on the data in the product specification sheet.
| Interface according to | IEC60169-15 |
| Impedance | 50Ω |
| Freqency Range | DC to 18GHz |
| Insertion Loss | ≤0.30dB |
| VSWR | ≤1.3 |
| Insulation Resistance | ≥5000MΩ |
| Center Contact Resistance | ≤3mΩ |
| Outer Contact Resistance | ≤2mΩ |
| Mating Cycles | ≥500 |
| Temperature Range | -65-+165℃ |
| Dielectric | PTFE |
Application:
1.Microwave Devices: Due to their compact size and capability to operate at high frequencies, SMA connectors are frequently used in RF circuits of microwave devices to connect RF cables or microstrip lines.
2.Digital Communication Systems: SMA connectors are suitable for digital communication systems as they can provide high-performance connections, particularly when coaxial connections are required for RF components within equipment.
3.Telecommunications: In telecommunications, SMA connectors are employed in building and maintaining communication networks, including applications in wireless communication equipment.
4.Test and Measurement Equipment: Many test and measurement applications, especially those operating below 18 GHz, utilize SMA connectors. This is because SMA connectors are relatively compact, user-friendly, and often more economical than other cable standards.
Product Cataloge:
| RF Adapter |
| SMA RF Connector |
| SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
More Detail:

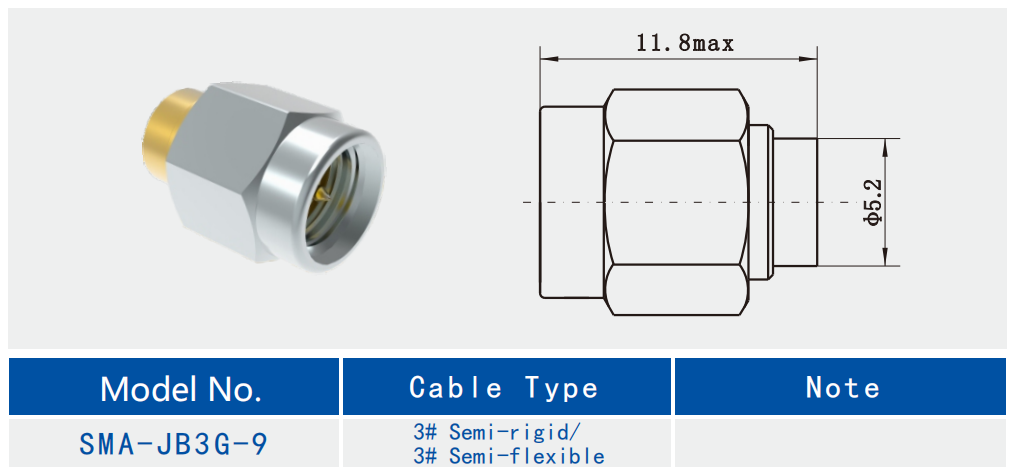

Interface Dimensions:
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
