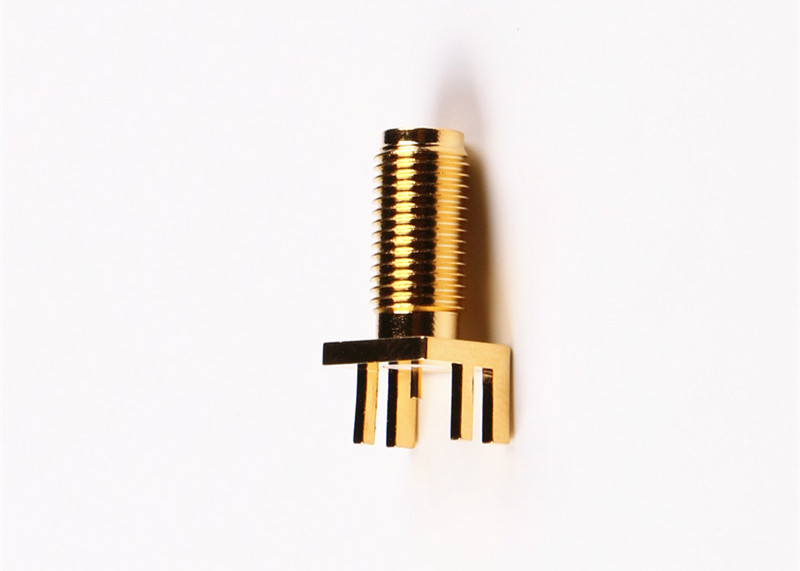

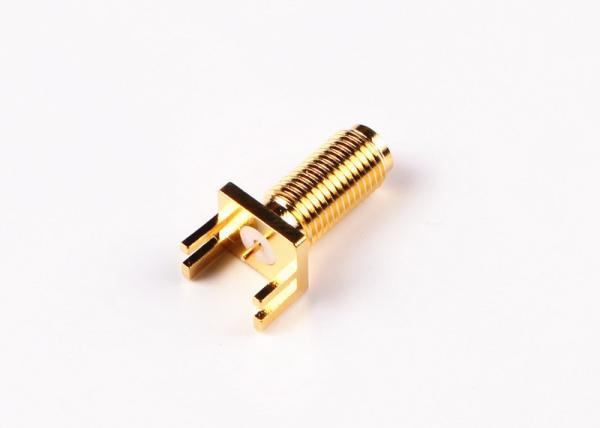

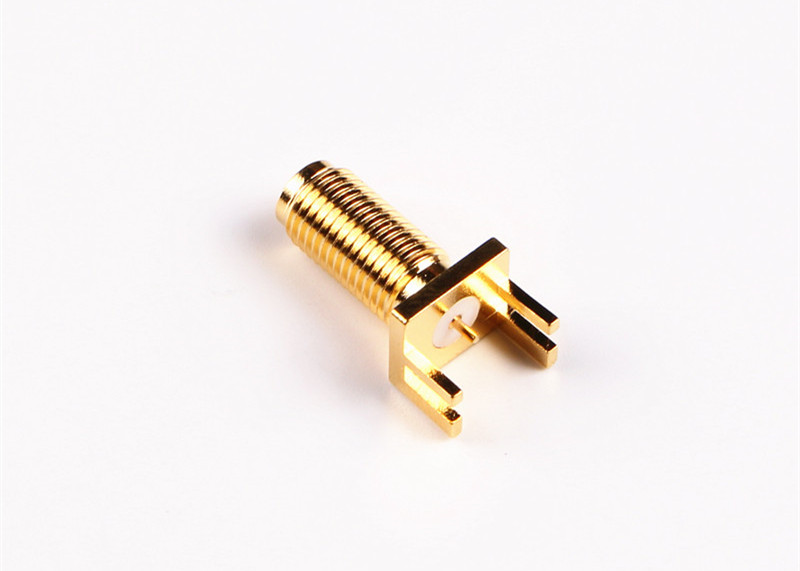

Gold Plated Male Plug PCB Mount SMA RF Connectors/SMA Coaxial Connector
SMA Series RF coaxial connector is a kind of small, high frequency coaxial connector, which has the advantages of small size, wide frequency band,superior mechanical and electrical performance, high reliability and so on. it's developed and produced according to MIL-C-39012. SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.
Specification:
| Electrical data | Requirements |
| Impedance | 50Ω |
| Frequency Range | Connect with solf cable DC~12.4GHz |
| Connect with semi-rigid cable DC~18GHz |
| Rated Voltage | 335VRMS |
| Dielectrics Voltage-resistance | 1000VRMS |
| Insulation Resistance | ≥5000MΩ |
| Center Resistance | Center Conductor | ≤3.0mΩ |
| Outer Conductor | ≤2.0mΩ |
| VSWR | ≤1.3 |
| Material &Mechanical data | Requirements |
| Center Conductor | Male | Brass Gold plated |
| Female | Sn-P Bronze Gold plated |
| Elastic Contact | Beryllium bronze Nickel plated |
| Shell and other Metal Parts | Brass Nickel plated |
| Stainless Passivation |
| Crimping Sleeve | Brass Nickel plated |
| Insulators | PTFE |
| Sealing Ring | Silicone Rubber |
| Durability | 500 cycles |
| Tightening torque of connection | 0.79－1.13N .m |
| Operating Temperature | -45 to +125Deg C |
Prooduct Detail:
Features:
1, SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead ,or 4 holes panel configurations.
2, SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
3, SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4, SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz (Our SMA RF connectors can be 20GHz).
Application:
* Broadband
* Instrumentation
* Antennas
* Telecom
* Aerospace
* Phased array antennas
* Telecommunications
* Board-to-board interconnect
Product Cataloge:
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
NOTE:
We have over 4000 types of interconnect products, if the connector you are using is not found, please contact us with your details.
