SBMA Female Flange Brass Straight RF Coaxial Connector with Microstrip
As a miniaturized version of the BMA series coaxial connectors, the SBMA series also boasts blind-mate capabilities. With its advantageous bandwidth and compact size, it meets the demands for microwave device miniaturization and modularity.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics |
| Impedance | 50 Ohm |
| Frequency Range | DC~40GHz |
| Rated Voltage | 170 VRMS (Maximum sea-level) |
| Dielectrics Voltage-resistance | 500 VRMS (Maximum sea-level) |
| Insulation Resistance | ≥2000MOhm |
| Contact Resistance | Outer conductor | <=2mOhm |
| Center conductor | <=6 mOhm |
| VSMR | ≤1.25 |
| Insertion Loss | ≤0.30dB |

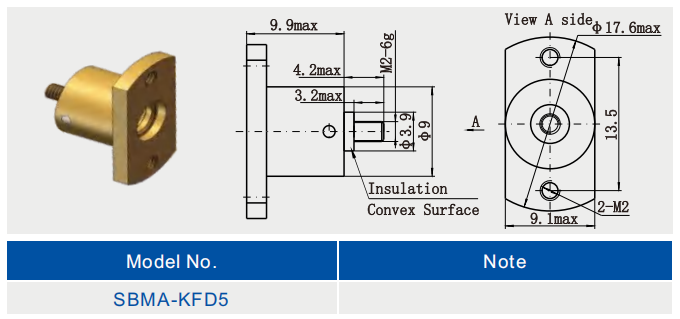

Product Detail
| Material & Mechanical Characteristics |
| Center Conductor | Male/Plug | Brass | Gold plated |
| Female/Socket | Sn-P bronze | Gold plated |
| Resilience Contact | Beryllium bronze | Nickel Plated |
| Shell / Housing | Brass,stainless steel | Nickel Plated |
| Insulators | PTFE |
| Sealing Ring | Silicone Rubber |
| Durability | 500 cycles |
| RoHS Compliant | Yes |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 0.6N max |
| Un-Coupling Force | 0.6 N max |
Environmental Specification:
| Operating Temperature | -65 to +165Deg C |
| IP Rating ( Mated ) | IP64 |
Features:
1. High reliability:
Long mechanical life, generally up to 500 times or more, reducing the frequency of connector replacement and lowering maintenance costs. Reasonable structural design, such as the use of floating structure, guiding sleeve and contact head of the two-stage floating fit, etc., to ensure the stability and reliability of the connection, but also easy to install and maintain.
2. High degree of standardization:
In accordance with the standard production, product size, performance and other clear standards, to ensure compatibility and interchangeability between SBMA connectors produced by different manufacturers.
Application:
Other fields:
In medical equipment, such as magnetic resonance imaging (MRI) equipment, medical RF therapy equipment, etc., also need to use RF connectors to connect the relevant electronic equipment.SBMA connectors can meet the special requirements of medical equipment for signal transmission, while its miniaturization characteristics also help the miniaturization and portable design of medical equipment.
In the field of industrial automation, some industrial control equipment, sensors, etc. may also use RF technology, SBMA connectors can be used for the connection between these devices to achieve wireless data transmission and remote control.
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
Product Tags:
|
|

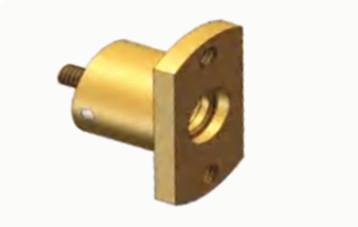

SBMA Female Flange Straight RF Coaxial Connector with Microstrip and Nickel / Gold Plating Images
|
