Bulkhead Mount TNC To MCX Female / Jack To Female / Jack RF Coaxial Adapters Up To 6GHz

Xi'an Elite Electronic Industry Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Bulkhead Mount TNC To MCX Female / Jack To Female / Jack RF Coaxial Adapters Up To 6GHz

Brand Name : ELT

Model Number : TNC/MCX-KYK

Certification : Rohs,ISO Certificates

Place of Origin : Xi'an, China

MOQ : 50

Price : Depending on the quantity

Payment Terms : T/T or LC

Supply Ability : As requirements

Delivery Time : 5-7 working days for stocked quantity

Packaging Details : 1pcs/plastic bag;10bags/carton

Product Name : TNC Female to SMA Female Adapter

Center Contact : Copper Alloy, Gold Plated

Shell : Copper Alloy, Nicle Plated

Mount Method : Flange Mount

Imdepence : 50 Ohm

Rated Voltage : 250V

DWV : 750V

Insulation Resistance : 5000Ohm

Frequency : DC~6GHz

Insulation Dielectric : PTFE

Temperature Range : -55℃~+125℃

Contact Now

Product Description:

The TNC to MCX adapter is designed to connect TNC connectors with MCX connectors. This adapter is widely used in scenarios where devices with TNC interfaces need to be connected to devices with MCX interfaces. It is commonly utilized in fields such as wireless communication, test equipment, and RF instruments, where conversion between different interfaces is frequently required. Elite Electronic have the TNC to MCX adapters with the flange mount,bulkhead mount..., also we have some waterproof Models.


Outline Dimension of TNC to MCX Female to Female Bulkhead Mount Adapters TNC/SMA-KYK:

Bulkhead Mount TNC To MCX Female / Jack To Female / Jack RF Coaxial Adapters Up To 6GHz

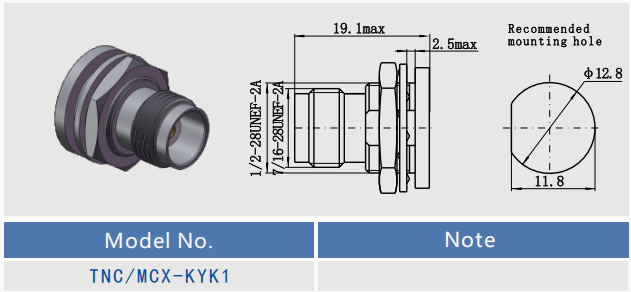

Outline Dimension of TNC to MCX Jack to Jack Bulkhead Mount Adapters TNC/SMA-KYK1:

Bulkhead Mount TNC To MCX Female / Jack To Female / Jack RF Coaxial Adapters Up To 6GHz

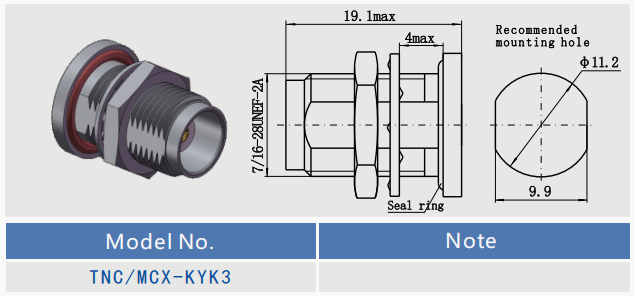

Outline Dimension of TNC Female to MCX Female Bulkhead Mount Adapters TNC/SMA-KYK3:
Bulkhead Mount TNC To MCX Female / Jack To Female / Jack RF Coaxial Adapters Up To 6GHz

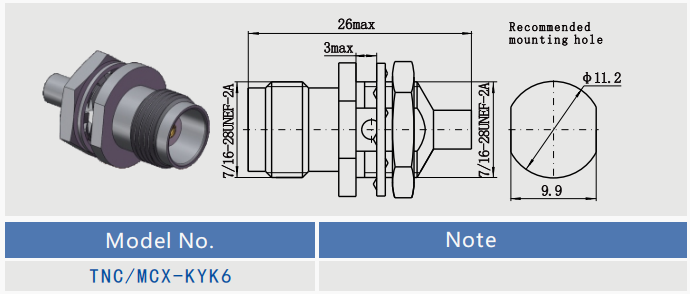

Outline Dimension of TNC Jack to MCX Jack Bulkhead Mount Adapters TNC/SMA-KYK6:
Bulkhead Mount TNC To MCX Female / Jack To Female / Jack RF Coaxial Adapters Up To 6GHz

Applications:

TNC adapters is widely used in the fields of aviation,aerospace, radar, microwave communication and digital communication.
Bulkhead Mount TNC To MCX Female / Jack To Female / Jack RF Coaxial Adapters Up To 6GHz

Packing and Shipping:

Packaging:
The TNC Jack to MCX Jack Bulkhead Mount Adapters is carefully packaged in a carton to ensure safe transportation. The connector is secured in place with protective foam padding to prevent any damage during shipping. The box is labeled with the product name and specifications for easy identification.
Bulkhead Mount TNC To MCX Female / Jack To Female / Jack RF Coaxial Adapters Up To 6GHz

Shipping:
We offer fast and reliable shipping for the TNC Female to MCX Female Bulkhead Mount Adapters . We will ship the stocked connectors within 5-7 business days. After shipping, you will receive a tracking number of your shipment.
