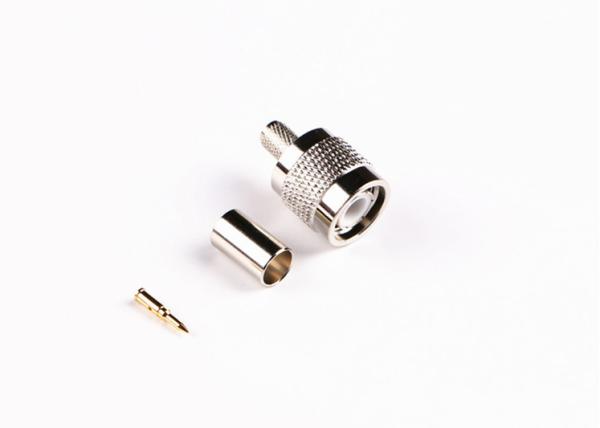

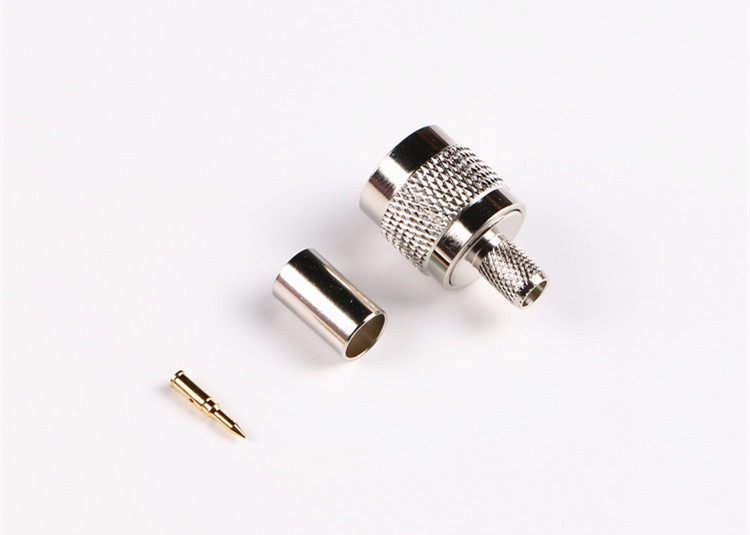

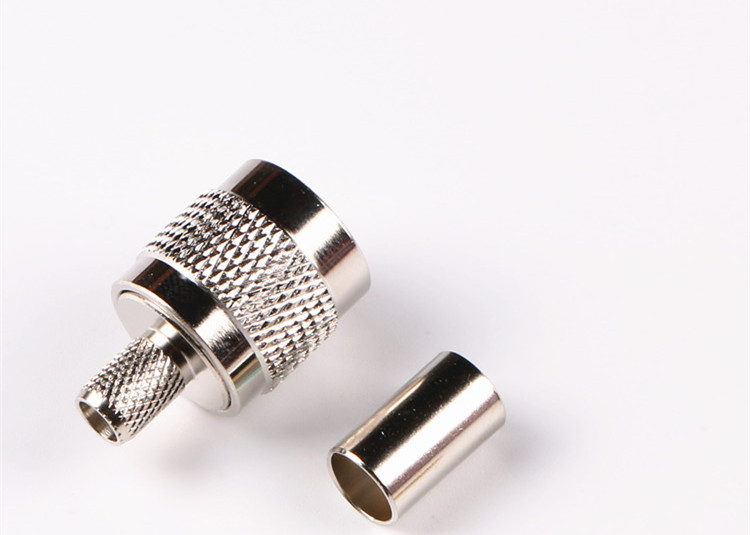

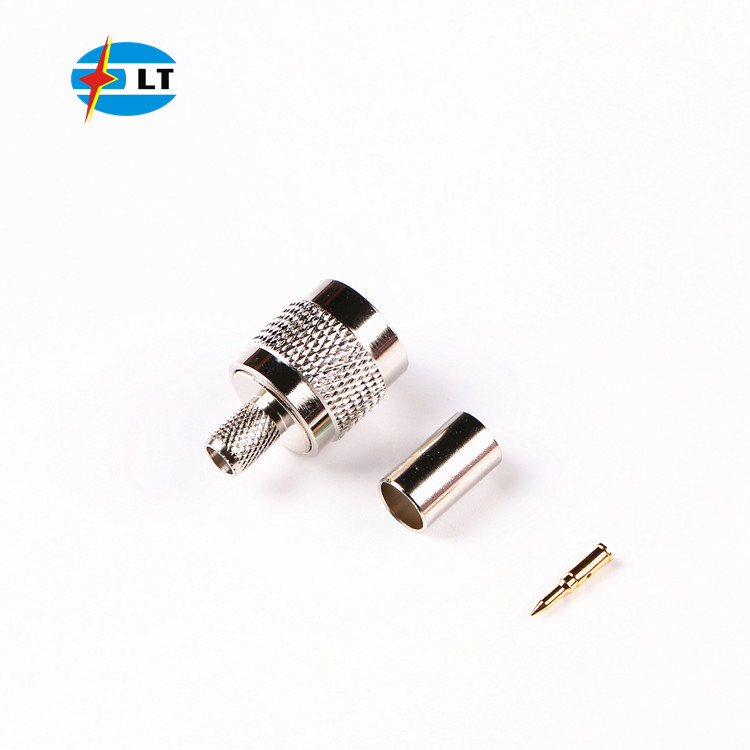

Straight TNC Male Plug RF Coaxial Crimpping Connector with Nickel Plated
TNC series product is designed as a threaded version of BNC connector, the TNC RF connectors features screw threads for mating.TNC connectors are miniature, threaded waterproof units with a constant 50ohm impedance,operating from DC-11ghZ, there are two types of TNC connectors:standard and reverse polarity. These low cost connector typically utilize die cast and molded components.While performance will not be equal to the industrial or military grade products, these products are ideal for use on a varity of commercial applications. Widely used for antenna connections, TNC have many applications in wireless, defence, communications and general industrial markets. Reverse polarity and 75 ohm TNC are also available.
Specification
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~4GHz |
| Rated Voltage | 2500VRMS (Maximum sea-level) |
| Dielectrics Voltage-resistance | 750VRMS (Maximum sea-level) |
| Insulation Resistance | ≥2000MΩ |
| Contact Resistance | Outer conductor | ≤6mΩ |
| Center conductor | ≤1.5mΩ |
| VSMR | ≤1.3 |
Mechanical Specification
| Design Standard | IEC 60169-17 |
| RoHS Compliant | Yes |
| Centre Contact Termination | Crimp |
| Outer Contact Termination | Crimp |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 13.6N max |
| Un-Coupling Force | 13.6N max |
Detailed Drawing
Features:
1, TNC series RF Electronic connector is designed as a threaded version of BNC connector.
2, TNC RF connectors features screw threads for mating. RF TNC connectors are miniature, threaded waterproof units with a constant 50ohm impedance,operating fromDC-11ghz
3, Two types of TNC connectors:standard and reverse polarity
4, These low cost china supplier factory RF connector typically utilize die cast and molded components.
5, While performance will not be equal to the industrial or military grade products, these RF crimp connectors are ideal for use on a varity of commercial applications
6,The TNC series products are a kind of whorl joining, it has work width frequently,join reliable.
Application:
* Cellular mobile telephones
* Instrumentation
* Base Station
* Network
* Radar
* Telecommunications
NOTE:
We have over 10,000 types of TNC connector, if the connector you are using is not found, please contact us with your details.
