Gold Plated RF Adapter Right Angle 50Ohm SMA Female to SMA Female Adaptor Connector

Name: Gold Plated RF Adapter Right Angle 50Ohm SMA Female to SMA Female Adaptor Connector
Brand: ELT (Elite)
Price: 1 USD

Gold Plated RF Adapter Right Angle 50Ohm SMA Female to SMA Female Adaptor Connector Manufactures

Brand Name : ELT (Elite)

Model Number : SMA Adapter

Certification : CE ROHS

Place of Origin : China

MOQ : 100

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1,000,000pcs per week

Delivery Time : 5-8 days

Packaging Details : * Standard Export Carton * According to customers' requirements

Product name : SMA RF Coaxial Adapter

Plating : Gold Plated/ Nickel Plated

Impedance : 50Ω

Certificate : CE ROHS

Dielectric : PTFE

Model : SMA-KWK

Contact Now

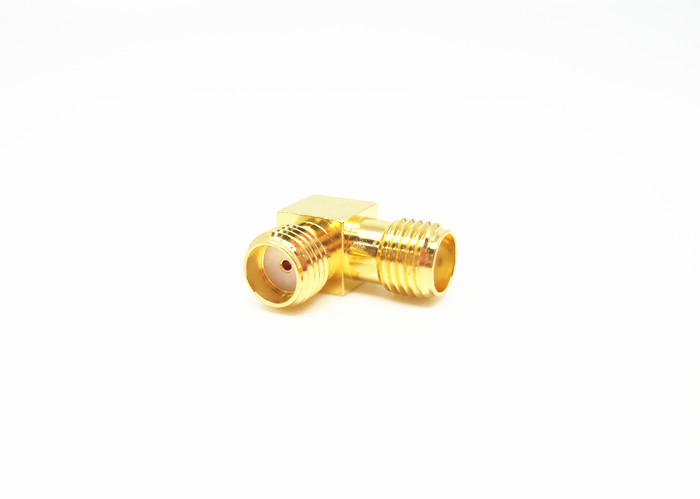

Gold Plated RF Adapter Right Angle 50Ohm SMA Female to SMA Female

1. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead or 4 hole panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20 GHz).

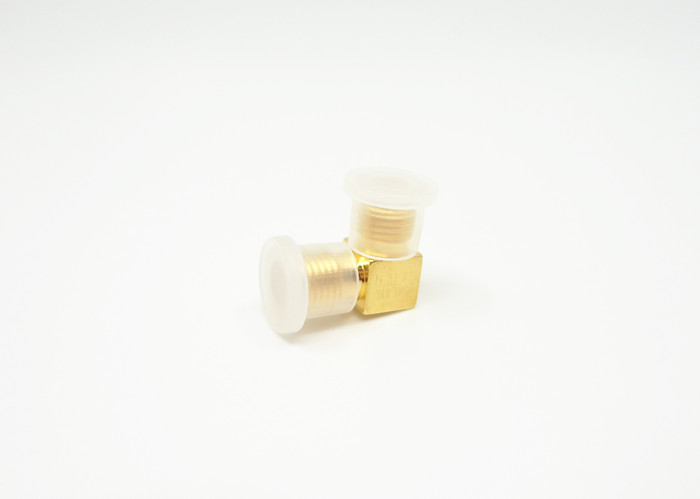

Gold Plated RF Adapter Right Angle 50Ohm SMA Female to SMA Female Adaptor Connector

Specifiacation:

Interface according to	IEC60169-15
Impedance	50Ω
Freqency Range	DC to 18GHz
Insertion Loss	≤0.30dB
VSWR	≤1.2(DC-6GHz)
Insulation Resistance	≥5000MΩ
Center Contact Resistance	≤3mΩ
Outer Contact Resistance	≤2mΩ
Mating Cycles	≥500
Temperature Range	-65-+165℃
Dielectric	PTFE

Detailed Drawing

Gold Plated RF Adapter Right Angle 50Ohm SMA Female to SMA Female Adaptor Connector

Application:

* Network

* Satcom

* Computer/LANs

* Mobile communication

* Instrumentation

* Base Station

* Mobile communication

* Outdoor facilities

* Radar,microwave

* Telecommunications

* Instrumentation

* Automotive

* Jump line join

* Basic facility

* Radio, TV aerial system

Product Cataloge:

RF Adapter

RF Cable Assemblies

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

Waveguide To Coaxial Adapter

SMA/SSMA RF Connector

SMP/SSMP RF Connector

MCX/MMCX RF Connector

TNC RF Connector

N Type RF Connector

BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm)

Packaging & Delivery:

* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us with your details.
