40GHz Waveguide To Coaxial Adapter WR28 K 2.92mm Brass Material Right Angle

Brand Name : ELT

Model Number : K/BJ320-KF

Certification : ROHS ISO-9001-2015

Place of Origin : China

MOQ : 5 pcs

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10,000 pcs per month

Delivery Time : Within 5-7 workdays(for stocks)

Packaging Details : Standard Export Carton

Product Name : Waveguide to Coaxial Adapters

Material : Brass connector

Frequency Range : 26.4-40GHz

Connector : 2.92mm(K type)

VSWR : 1.25

Waveguide Size : WR28

Body Style : Right Angle

Insertion loss : ≤0.35 dB

Contact Now

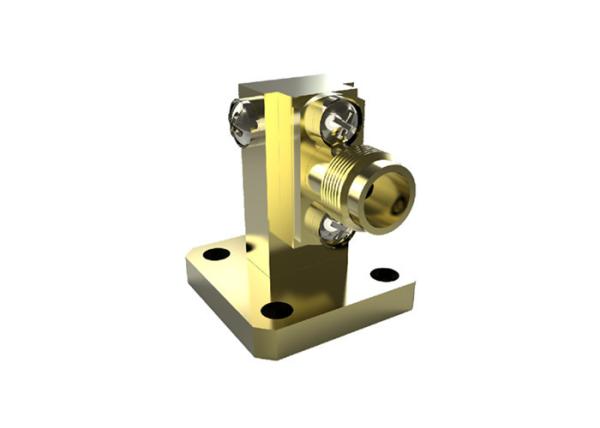

40GHz WR28 K 2.92mm Waveguide to Coaxial Adapter Female Right Angle

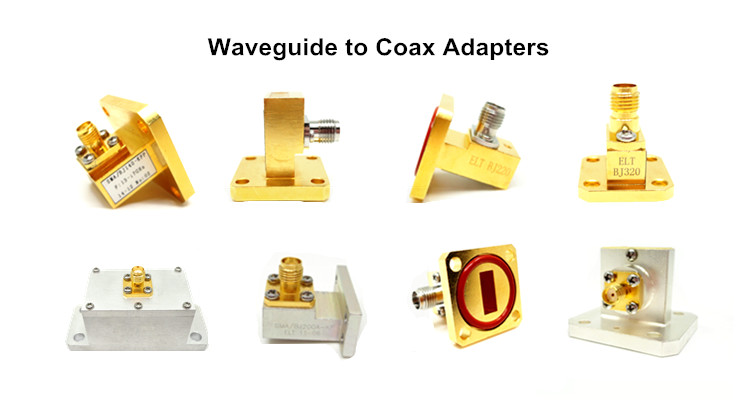

Waveguide to Coaxial Adapter produced by Xi'an Elite Electronic Industrial Co., Ltd. are divided into two structures, right angle and end lauch. For coaxial end of waveguide adapters, we can provide N type, TNC, SMA, 3.5mm, 2.4mm, SMP, SSMP and many other types. Their frequencies range from 5.4GHz to 70GHz. Our waveguide models range from BJ84 to BJ400 (WR112-WR22).

In addition, we can offer custom coaxial waveguide adapters in accordance with customers' special requirement.

Specification:

Product Name	Waveguide to Coaxial Adapters
Coaxial type	2.92mm(K type)
Waveguide Size	WR28
Body Style	Right Angle
Frequency Range	26.4-40.0GHz
SMA Impedance	50 Ohm
VSWR	1.25

Advantages:

-Our waveguide adapters are of high reliability, miniature size and excellent performance etc, which makes them extensively adopted in microwave measurement and millimeter wave devices etc.

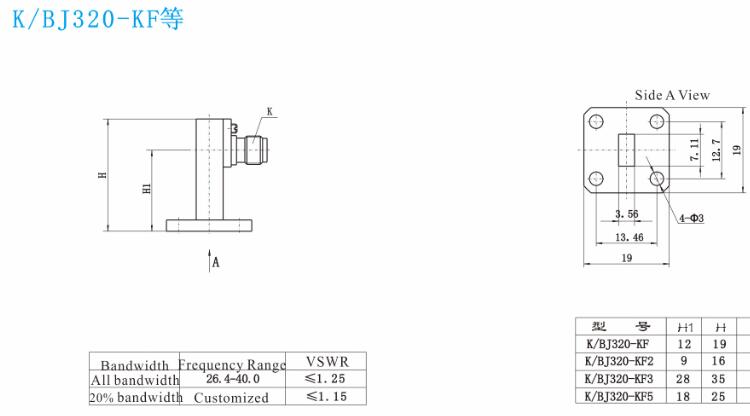

Detailed Drawing:

Unit(mm)

40GHz Waveguide To Coaxial Adapter WR28 K 2.92mm Brass Material Right Angle

Waveguide to Coax Adapter-ELT 2024.pdf

List of Waveguide to 2.92mm(K type) Coaxial Adapters:

Model Number	Description	Note
K/BJ220-KF2	WR42 to K(2.92mm) female right angle adapters	BJ220=WR42
K/BJ220-KF1	WR42 to K(2.92mm) female end launch adapters	K=female
K/BJ260-KF	WR34 to K(2.92mm) female right angle adapters	BJ260=WR34
K/BJ260-KF1	WR34 to K(2.92mm) female end launch adapters
K/BJ320-KF	WR28 to K(2.92mm) female right angle adapters	BJ320=WR28
K/BJ320-KF1	WR28 to K(2.92mm) female end launch adapters
K/BJ320-JF1	WR28 to K(2.92mm) male end launch adapters	J=male
K/BJ400-KF1	WR22 to K(2.92mm) female end launch adapters	BJ400=WR22
K/24JS18000-KF	WR24JS18000 to K(2.92mm) female end launch adapters

Cross-references of waveguide Standards

Chinese Standards	International Standards	Frequency Range (GHz)
BJ84	WR112	6.57~9.99
BJ100	WR90	8.20~12.5
BJ120	WR75	9.84~15.0
BJ140	WR62	11.9~18.0
BJ180	WR51	14.5~22.0
BJ220	WR42	17.6~26.7
BJ260	WR34	21.7~33.0
BJ320	WR28	26.3~40.0
BJ400	WR22	32.9~50.1
BJ500	WR18	39.2~59.6
BJ620	WR14	49.8~75.8
BJ740	WR12	60.5~91.9
BJ900	WR10	73.8~112

40GHz Waveguide To Coaxial Adapter WR28 K 2.92mm Brass Material Right Angle

NOTE:
We have over 10,000 types of Waveguide to Coaxial Adapters for choice, if the adapter you are using is not found, please contact us with your details. ODM dimension is welcomed.

40GHz Waveguide To Coaxial Adapter WR28 K 2.92mm Brass Material Right Angle

Product Tags:

coax to waveguide adapter

right angle coax adapter

40GHz Waveguide To Coaxial Adapter WR28 K 2.92mm Brass Material Right Angle Images
