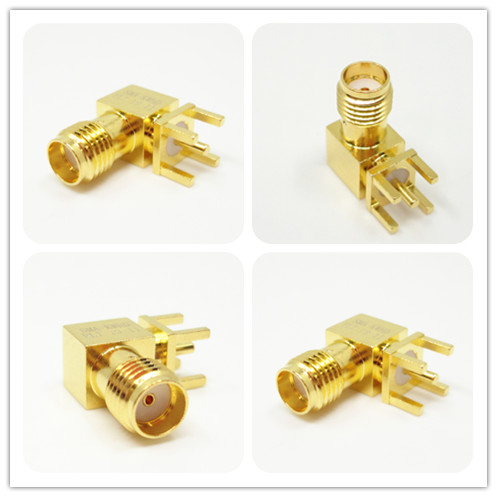

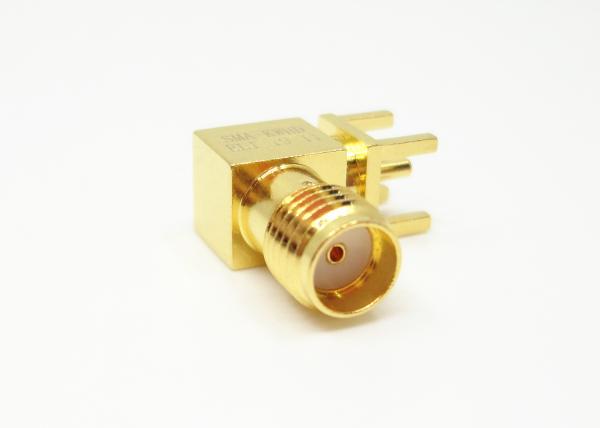

High Quality Gold Plated Female PCB Solder Mount SMA Right Angle Connectors
SMA RF coaxial connector is a small, high frequency coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20 Ghz.
Outline Drawing of SMA RF Coax Connectors:
(mm)
| Model No. | L | L1 | Note |
| SMA-KWHD | 13.5 | 3.9 | |
| SMA-KWHD9 | 11.5 | 1.9 | |
| SMA-KWHD11 | 15.6 | 6 | |
Key Features:
1. Frequency range up to 18GHz Sub-miniature coaxial connectors
2. Using a threaded interface
3. Available in passivation or gold plating
4. Brass and stainless steel material options
5. Wide variety of orientations and PCB terminations
6. Available in straight or right angle versions
7. With bulkhead, 2 holes panel, 4 holes panel or mountless options.
8. Broad range with male, female and adapters variants.
9. RoHS compliant
Specifiacation:
| Interface according to | IEC60169-15 |
| Impedance | 50Ω |
| Freqency Range | DC to 18GHz |
| Insertion Loss | ≤0.30dB |
| VSWR | ≤1.2(DC-6GHz) |
| Insulation Resistance | ≥5000MΩ |
| Center Contact Resistance | ≤3mΩ |
| Outer Contact Resistance | ≤2mΩ |
| Mating Cycles | ≥500 |
| Temperature Range | -65-+165℃ |
| Dielectric | PTFE |
Interface Dimentions:
Product Cataloge:
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector |
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
Application:
* Broadband
* Instrumentation
* Base Station
* Mobile communication
* Outdoor facilities
* Radar,microwave
* Phased array antennas
* Telecommunications
* Board-to-board interconnect
Related Products

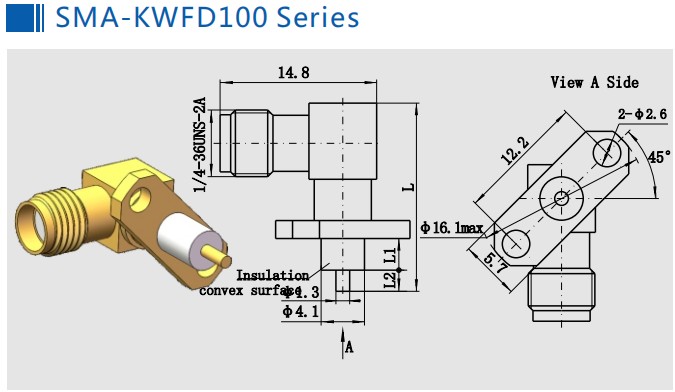

1.SMA Female 4 Holes Flange Mount Right Angle RF Coaxial Connectors
| Model No. | L | L1 | L2 | Note |
| SMA-KWFD100 | 17.1 | 3 | 3 | |
| SMA-KWFD121 | 19.9 | 5.4 | 5.4 | |

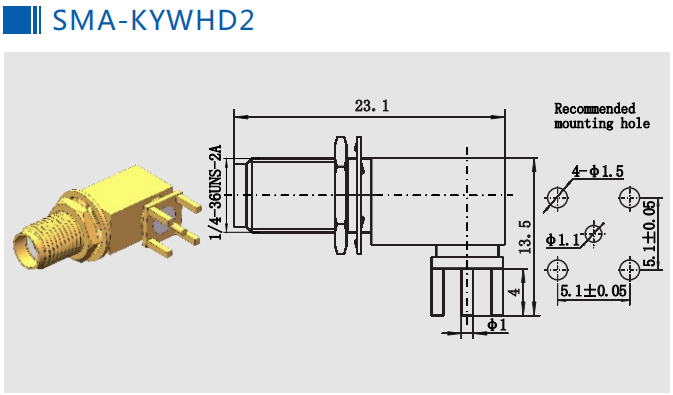

2.SMA Female Right Angle Bulkhead Mount Connrctors for PCB Solder

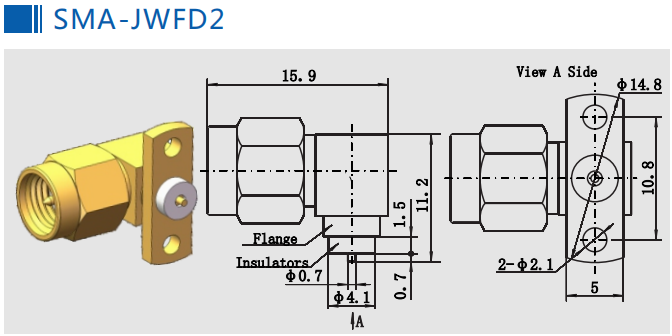

3.SMA Male Right Angle 2 holes Flange Mount Gold Plated RF Connrctors

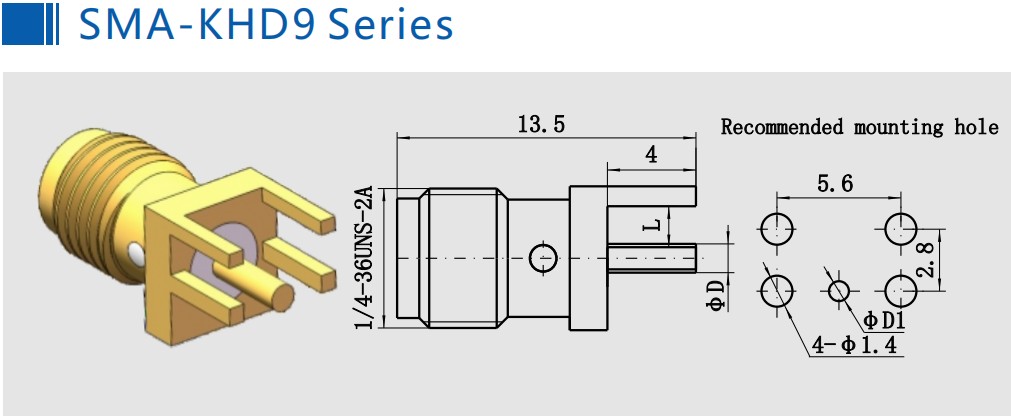

4.SMA Female PCB Panel Solder Mount RF Connectors
| Model No. | L | D | D1 | Note |
| SMA-KHD9 | 2 | 1.3 | 1.4 | |
| SMA-KHD9A | 1.8 | 0.8 | 0.9 | |
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
