Female 18GHz Brass 4 Holes Flange Mount SMA Straight RF Connector

Product Categories

Xi'an Elite Electronic Industry Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

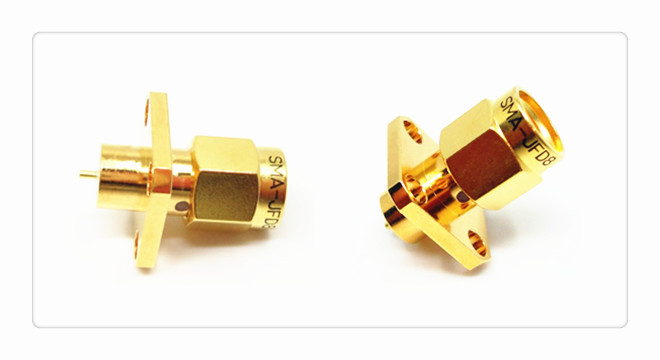

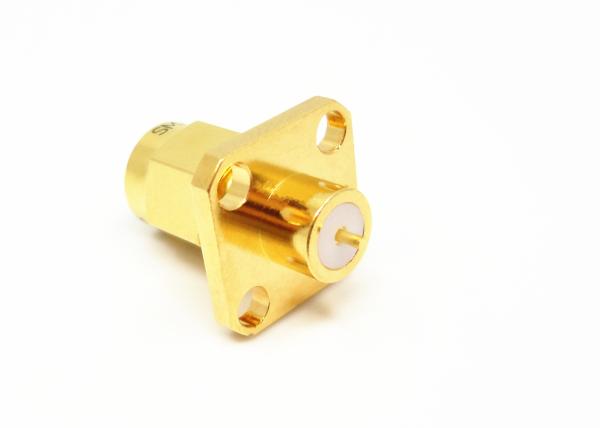

Female 18GHz Brass 4 Holes Flange Mount SMA Straight RF Connector

Name: Female 18GHz Brass 4 Holes Flange Mount SMA Straight RF Connector
Brand: ELT (Elite)
Price: 1 USD

Female 18GHz Brass 4 Holes Flange Mount SMA Straight RF Connector Manufactures

Brand Name : ELT (Elite)

Model Number : SMA-JFD8

Certification : ROHS, ISO-9001-2015

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1,000,00 Pieces Per Month

Delivery Time : Within 3-4 weeks

Packaging Details : Standard Export Carton

Item : SMA RF Conector

Plating : Gold Plated

Gender : Male

Impedance : 50Ω

Frequency : DC~18GHz

Lifetime : 500 Cycles

Body : Brass

Vswr : ≤1.3

Contact Now

SMA Male Plug 4 Holes Flange Panel Mount RF Coaxial Connectors

1.SMA 50 ohm connectors are semi-precision units that provide excellent electrical performance from DC to 20 GHz and outstanding mechanical durability.

2.Built in accordance with MIL-C-39012, SMA connectors can be mated with all connectors that meet these specification mating diameters regardless of manufacturer.

3.SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.

Female 18GHz Brass 4 Holes Flange Mount SMA Straight RF Connector

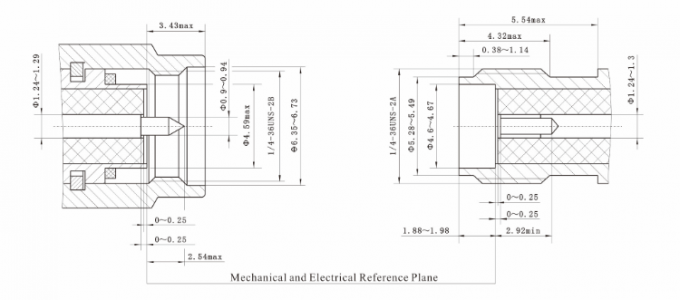

Outline Drawing:(mm)

Female 18GHz Brass 4 Holes Flange Mount SMA Straight RF Connector

Model No.	L	L1	D	D1	D2	Note
SMA-JFD8	4	1.5	2.6	0.8	6
SMA-JFD9	4	2.5	2.6	1.3	6
SMA-JFD110	3	1.5	2.6	0.8	6
SMA-JFD113	2.4	2.5	2.6	1	6
SMA-JFD122	4	2.5	2.6	0.8	6
SMA-JFD138	4	1.5	2.6	0.5	4.1
SMA-JFD159	3	1.5	2.6	0.8	6
SMA-JFD163	4	3	2.6	0.8	6
SMA(S)-JFD162	3	1.5	2.6	0.8	6	Waterproof

Specifiacation of SMA Rf Connectors:

Electronic and Material Characterials
Impedance		50Ω
Frequency Range		DC~18GHz
Rated Voltage		335 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance		1000 VRMS (Maximum sea-level)
VSWR		≤1.3
Insulation Resistance		≥5000MΩ
Center conductor	Male	Brass gold plated
	Female	Beryllium copper gold plated
Shell and other metal parts		Brass gold plated
Cable sheath		Brass nickle plated
Insulator		PTFE
Seal ring		Silicon rubber
Mating torque		0.79 -1.13 N.m

Application:

Microwave Systems Telecommunications
Space
5G Solutions
Measurement Systems
Mobile Telephone WiFi Antennas Systems

NOTE:

We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
