Miniature Size SMA RF Connector Coaxial Cable Connectors for Commuication

Name: Miniature Size SMA RF Connector Coaxial Cable Connectors for Commuication
Brand: ELT (Elite)
Price: 1 USD

Miniature Size SMA RF Connector Coaxial Cable Connectors for Commuication Manufactures

Brand Name : ELT (Elite)

Model Number : SMA-KFD13

Certification : ROHS, ISO-9001-2015

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1,000,00 Pieces Per Month

Delivery Time : Within 3-4 weeks

Packaging Details : Standard Export Carton

Product name : SMA RF Conector

Plating : Gold Plated

Gender : Female

Impedance : 50Ω

Frequency : DC~18GHz

Durability : 500 Cycles

Application : Commuication

Model : SMA-KFD13

Contact Now

Miniature Size SMA RF Connector Coaxial Cable Connectors for Commuication

1. SMA RF connectors are available in quick connect, push-on or standard interface, straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz (Our SMA RF connectors can be 20GHz).

Miniature Size SMA RF Connector Coaxial Cable Connectors for Commuication

Specifiacation:

Interface according to	IEC60169-15
Impedance	50Ω
Freqency Range	DC to 18GHz
Insertion Loss	≤0.30dB
VSWR	≤1.2(DC-6GHz)
Insulation Resistance	≥5000MΩ
Center Contact Resistance	≤3mΩ
Outer Contact Resistance	≤2mΩ
Mating Cycles	≥500
Temperature Range	-65-+165℃
Dielectric	PTFE

Application:
* Broadband
* Instrumentation
* Phased array antennas
* Telecommunications

* Board-to-board interconnect

* Base Station

* Mobile communication

* Outdoor facilities

* Radar,microwave

Product Cataloge:

RF Adapter

SMA/SSMA RF Connector

SMP/SSMP RF Connector

TNC RF Connector

N Type RF Connector

MCX/MMCX RF Connector

BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)

RF Cable Assemblies

Waveguide to Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

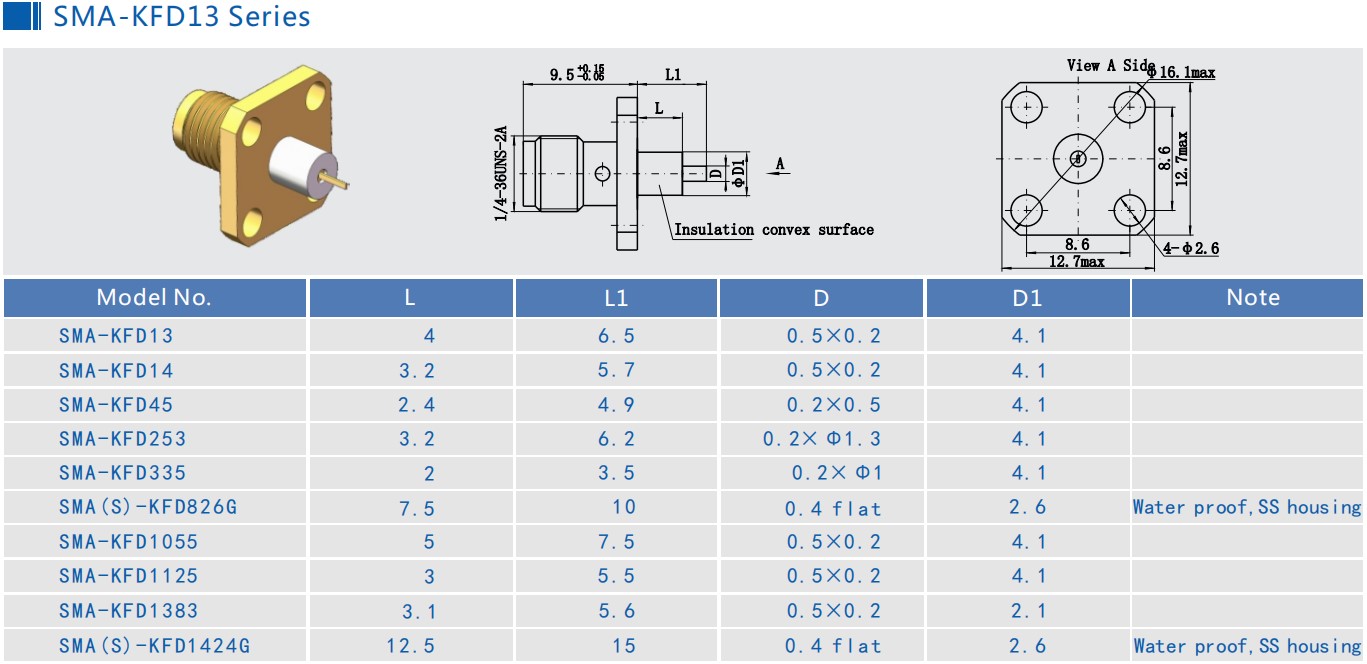

More Details of Miniature Size SMA RF Connector Coaxial Cable Connectors for Communication:

Miniature Size SMA RF Connector Coaxial Cable Connectors for Commuication

NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.

Product Tags:

sma antenna connector

sma bulkhead connector

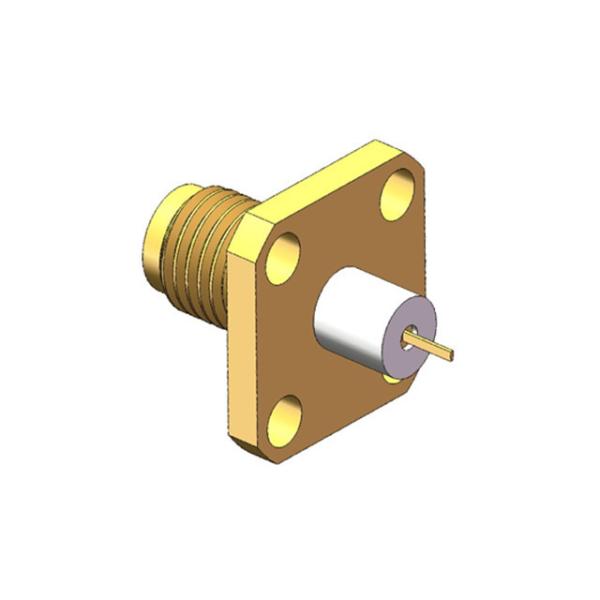

Miniature Size SMA RF Connector Coaxial Cable Connectors for Commuication Images
