Nickel Plated SMA Female Connector DC 18GHz Frequency 500 Cycles Durability
1. SMA RF connectors are available in quick connect, push-on or standard interface, straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20 GHz).

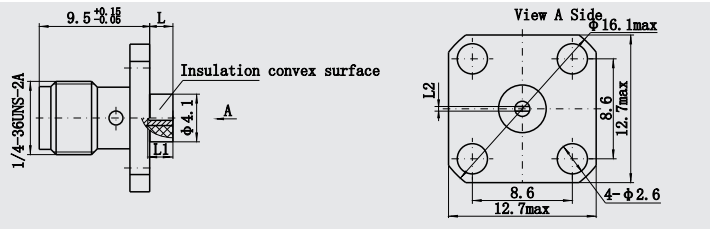

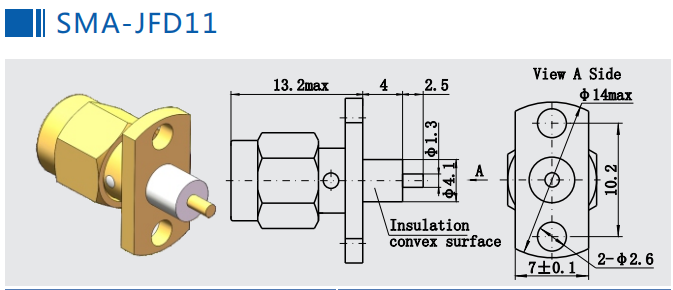

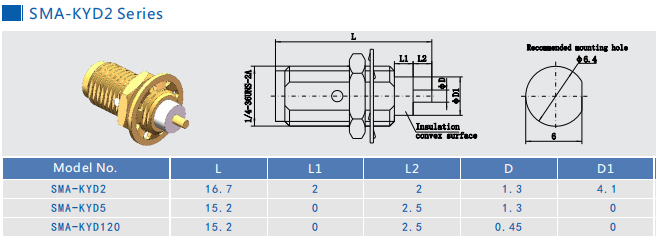

Outline Drawing:
| Model No. | L | L1 | L2 |
| SMA-KFD15 | 2 | 2 | 0.4 |
| SMA-KFD24 | 2 | 2 | 0.2 |
| SMA-KFD28 | 3 | 2.5 | 0.2 |
Note:The slot is parallel to one side of flange.
Specifiacation:
| Interface according to | IEC60169-15 |
| Impedance | 50Ω |
| Freqency Range | DC to 18GHz |
| Insertion Loss | ≤0.30dB |
| VSWR | ≤1.2(DC-6GHz) |
| Insulation Resistance | ≥5000MΩ |
| Center Contact Resistance | ≤3mΩ |
| Outer Contact Resistance | ≤2mΩ |
| Mating Cycles | ≥500 |
| Temperature Range | -65-+165℃ |
| Dielectric | PTFE |
Application:
* Broadband
* Instrumentation
* Phased array antennas
* Telecommunications
* Board-to-board interconnect
* Base Station
* Mobile communication
* Outdoor facilities
* Radar microwave
Interface Dimentions:
Other Female/Male SMA Connector
1.SMA Female RF Connector for Semi-rigid Semi-flex Cable
2.SMA Male Microstrip series RF Connector
3.SMA Solder Attachment Male RF Connector for PCB
4.SMA Threaded Bulkhead Mount Female Connector
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
